Imagine Series 241 - Rodgers

35 Main Pipe Organ Stops Create sounds that lift spirits

The Imagine Series 241 delivers the most stunning sounds available in digital organs along with the ability to connect to wind-blown pipes, all in a beautiful 2-manual instrument. The organ has a total of 257 voices spread across 4 unique organ styles: American Eclectic, English Cathedral, French Romantic and German Baroque. On top of that, the organ features 35 premium orchestral voices. With 35 main stops, and the additional 99 Voice Palette™ stops, the Imagine 241 allows the organist to discover new possibilities.

Now featuring Rodgers Play™, users can conveniently playback recorded pieces and onboard hymns without the need to be at the console.

Main Pipe Organ Stops

DISCOVER

DISCOVER UNEQUALLED VERSATILITY

In addition to the 99 Voice Palette™ stops, the customizable Organ Stop Library provides another 88 pipe organ stops and ensembles while the Orchestral Library offers 35 premium orchestral voices. With a total of 257 choices at their fingertips, organists can create personalized registrations for any style and period of organ literature.

Opening up a new world of countless possibilities for organ registration, real-time stop selection enables advanced mix-and-match capabilities, going above and beyond the typical digital organ. Direct Streaming, a highly sophisticated technology featuring powerful ultra-fast computer processors and enhanced working memory, provides state-of-the-art operation and seamless integration.

Plus, we've overhauled the menus and user experience, including Library Direct Select™: an entirely new way to explore the many MIDI voices available to you as an organist.

BUILT TO THE HIGHEST STANDARD

The Imagine Series organs are carefully crafted to the standards of the American Guild of Organists (AGO) and showcase an elegantly designed and superiorly built console. A Rodgers exclusive 32-note radiating, velocity-sensitive AGO pedalboard is standard, as well as three Performance Touch^TM velocity-sensitive keyboards with 128 levels of velocity sensitivity for orchestral voices. Dimmable illumination adorns the music desk, pistons, tabs, and pedal lights.

IMAGINE

BEYOND ALL EXPECTATIONS

Banner Imagine 241

Specifications
Features
Stoplist
Library

Specifications

Imagine 241

VOICES

217 TOTAL VOICES

134 Organ stops (35 Main 99 Voice Palette Stops)

88 Organ Library stops and ensembles

35 Orchestral Voices

COUPLERS

3 plus 6 Library/MIDI Controls; Bass, Melody Swell and Melody Choir Couplers

MEMORY

99 levels per piston, unlimited memory banks with the USB drive

GENERAL PISTONS

10

DIVISIONAL PISTONS

5 Great, 5 Swell, 5 Pedal

SHOES

2 Expression (can be configured as 1 Expression, 1 Crescendo)

Dimensions

Depth with pedalboard: 46” (116.8 cm)

Depth without pedalboard: 27.7” (70.3 cm)

Height with music desk: 56.9” (144.5 cm)56.9” (144.5 cm)

Height without music desk: 47.8” (121.5 cm)

Width: 60” (152.4 cm)

Weights

Bench 46.3 lbs (21 kg)

Console 330.7 lbs (150 kg)

Pedalboard 79.4 lbs (36kg)

Total Weight 456.4 lbs (207 kg)

KEYBOARDS

Performance Touch™ velocitysensitive

keyboards

PEDALBOARD

32-note radiating velocitysensitive

AGO pedalboard for expressive playing of onboard percussive voices such as Piano, String Bass, or Timpani

TOE PISTONS

5 configurable, optional 10 or 14

TREMULANTS

2 (Great, Swell) Tremulants

AVAILABLE COLORS:

Dark

Oak

Medium

Oak

Light

Oak

Features

Imagine 241

High-Resolution Color LCD Display
Built-in and conveniently located headphone jacklocated headphone jack for quiet practice
Lighted tabs
Lighted music desk and kneeboard
Dimmable illumination for the entire console the entire console
Locking rolltop
Traditional wood veneer cabinet with deluxe wood cabinet with deluxe wood tambour
Music storage bench in matching finish
Deluxe adjustable bench (Optional)
Memory +/- pistons
User-friendly transposer thumb pistons affect live performance, playback of recorded songs, or Hymn Player selections

Organ Type piston immediately accesses American Eclectic, English Cathedral, French Romantic and German Baroque organ styles
On-board Hymn Player with 350 hymns common to many denominations
USB storage for registration data and recorded performances
Built-in demo songs, including music for worship and standard organ literature
MIDI In/Out and Local Off
Easy-to-use record and playback system, storable to USB
Pipe compatibility with wind blown pipeswind blown pipes
99 internal memory banks

Programmable pedal F# sustain function and programmable kick-switch functionssustain function and programmable kick-switch functions
Built-in Page Turn technology for hands-free page turning controlled by toe pistons for music displayed on tablet (optional)
12 reverb environments
9 historic temperaments
2.1-channel internal audio system: 2 channels x 50 watts full range audio + 1 channel x 160 watts subwoofer
Up to 10 external audio channels
2-channel audio system for external satellite loudspeakers (optional)
Onboard voicing finishing and leveling controls
Pipe organ modeling technologies

Stoplist

GREAT

American Eclectic

Violone 16’

Principal 8’

Chimney Flute 8’

Gemshorn 8’

Octave 4’

Spitzflute 4’

Quint 2 2/3’

Super Octave 2’

Cornet V

Fourniture IV

Trumpet 8’

Chimes

Zimbelstern

Library/MIDI A

Library/MIDI B

Tremulant

Swell to Great

English Cathedral

Double Open Diapason 16’

Open Diapason 8’

Rohrflute 8’

Unda Maris II 8’

Principal 4’

Waldflute 4’

Twelfth 2 2/3’

Fifteenth 2’

Cornet IV

Mixture IV

Tromba 8’

French Romantic

Montre 16’

Montre 8’

Bourdon 8’

Gambe 8’

Prestant 4’

Flute Ouverte 4’

Quinte 2 2/3’

Doublette 2’

Cornet IV

Grand Fourniture IV

Trompette 8’

German Baroque

Prinzipal 16’

Prinzipal 8’

Rohrflöte 8’

Quintatön 8’

Oktave 4’

Gemshorn 4’

Nasat 2 2/3’

Super Oktave 2’

Kornett V

Mixtur VI

Trompete 8’

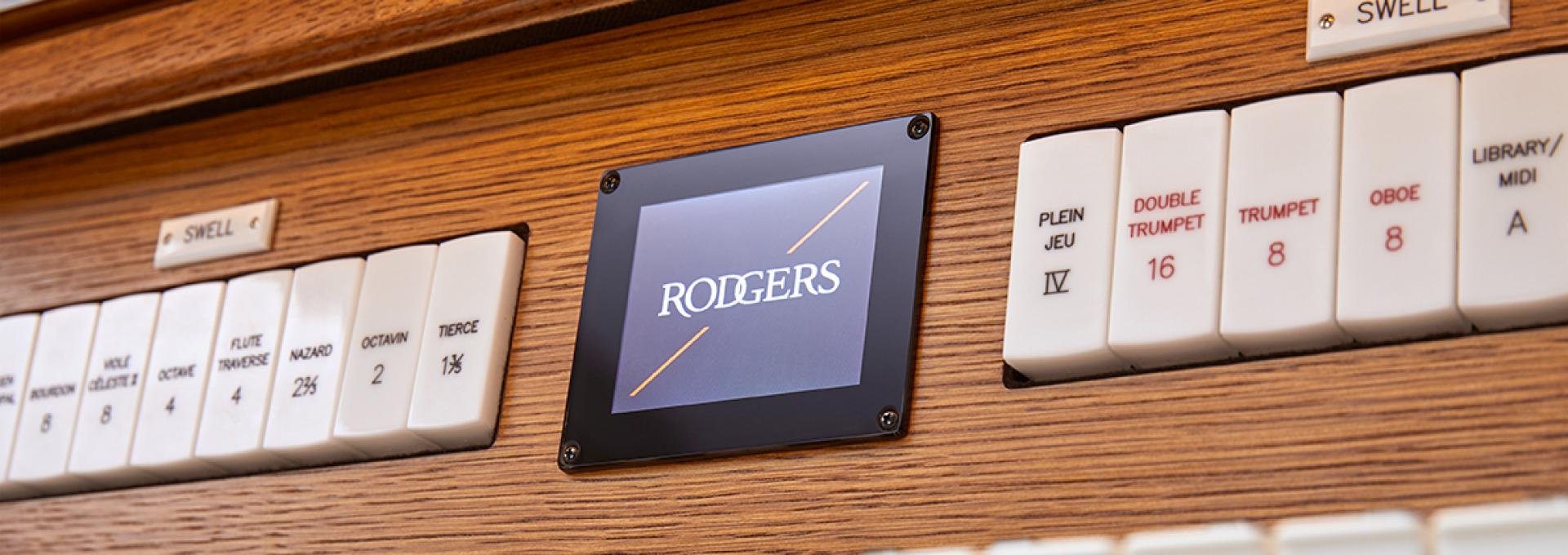

SWELL

American Eclectic

Bourdon Doux 16’

Geigen Principal 8’

Bourdon 8’

Viola Céleste II 8’

Octave 4’

Flute Traverse 4’

Nazard 2 2/3’

Octavin 2’

Tierce 1 3/5’

Plein Jeu IV

Double Trumpet 16’

Trumpet 8’

Oboe 8’

Library/MIDI A

Library/MIDI B

Tremulant

English Cathedral

Bourdon 16’

Horn Diapason 8’

Stopped Diapason 8’

Flûte Céleste II 8’

Octave Gamba 4’

Flute 4’

Quintflute 2 2/3’

Lieblich Piccolo 2’

Seventeenth 1 3/5’

Mixture III

Contra Trumpet 16’

Trumpet 8’

Cornopean 8’

French Romantic

Dulciane 16’

Montre 8’

Traverse Flute 8’

Voix Céleste II 8’

Prestant 4’

Flûte Octaviante 4’

Nasard 2 2/3’

Flute à Bec 2’

Tierce 1 3/5’

Fourniture III

Bombarde 16’

Trompette 8’

Hautbois 8’

German Baroque

Lieblich Gedackt 16’

Prinzipal 8’

Holzgedackt 8’

Schwebung II 8’

Oktave 4’

Flöte 4’

Nasat 2 2/3’

Waldflöte 2’

Quinte 1 1/3’

Scharff IV

Posaune 16’

Trompete 8’

Dulzian 8’

PEDAL

American Eclectic

Contra Bourdon 32’

Principal 16’

Subbass 16’

Bass Flute 8’

Choral Bass 4’

Mixture IV

Bombarde 16’

Trumpet 8’

Library/MIDI A

Library/MIDI B

Great to Pedal

Swell to Pedal

English Cathedral

Open Wood 32’

Open Diapason 16’

Bourdon 16’

Lieblich Bourdon 16’

Diapason 8’

Flute 8’

Fifteenth 4’

Mixture III

Tromba 8’

French Romantic

Contra Violon 32’

Principal 16’

Soubasse 16’

Prestant 8’

Bourdon 8’

Prestant 4’

Plein Jeu III

Bombarde 16’

Trompette 8’

German Baroque

Untersatz 32’

Prinzipalbass 16’

Bordun 16’

Oktave 8’

Gedeckt Bass 8’

Oktave 4’

Hintersatz III

Posaune 16’

Trompete 8’

Library

Imagine 241

RODGERS ORGAN AND ORCHESTRAL LIBRARY

The versatility of the Rodgers Imagine Series organs includes the built-in Organ and Orchestral Libraries, featuring 35 state-of-the-art organ stops and ensembles plus 35 premium orchestral voices.

The libraries are accessible on all manuals and pedals, through any of the two Library/MIDI controls per division. Each selection is user-voiceable and will save to a combination piston.

Classical Organ Library

1 Principal 32’

2 Lieblich Gedackt 16’

3 Dulciana 16’

4 Open Wood 16’

5 Spitzflute 16’

6 English Diapason 8’

7 Italian Principal 8’

8 Gamba Celeste II 8’

9 Aeoline 8’

10 Flute Harmonique 8’

11 Gross Flute 8’

12 Oktav 4’

13 Principal 4’

14 Rohrflöte 4’

15 Orchestral Flute 4’

16 Unda Maris II 4’

17 Violetta in Quinta 2 2/3’

18 Principal 2’

19 Salicional 2’

20 Piccolo 2’

21 Tierce 1 3/5’

22 Larigot 1 1/3’

23 Septième 1 1/7’

24 Sifflöte 1’

2 5 Jeu de Clochette II

26 Grave Cornet V

27 Tertian II

28 Pedal Grand Mixtur VI

29 Tierce Fourniture VI

30 Grand Mixtur IV-VIII

31 Klein Mixture III

32 Double Ophicleide 32’

33 Contre Bombarde 32’

34 Contra Fagott 16’

35 Pontifical Trumpet 16’

36 Rankett 16’

37 Trompet 8’

38 French Horn 8’

39 Hautbois 8’

40 Rohr Schalmei 8’

41 Dulzian 8’

42 Cromorne 8’

43 Regal 8’

44 Vox Humana 8’

45 Vox Humaine 8’

46 Tuba Mirabilis 8’

47 State Trumpet 8’

48 Chamades 8’

49 Trumpet De Fete 8’

50 Clarion 4’

51 2nd Clairon 4’

52 Schalmei 4’

53 16+4 Flute Celestes IV

54 16+4 Celestes IV

55 16+8+4 Celestes VI

Orchestra Library

300 Grand Piano

301 Electric Piano

302 Fantasia

303 Drawbars 1

304 Drawbars 2

305 Harpsichord 8

306 Harpsichord 8+4

307 Celesta

308 Orchestral Harp

309 Guitar

310 Acoustic Bass

311 String Ensemble

312 Chamber Strings

313 Slow Strings

314 Orchestral Trumpet

315 Violin

316 Slow Violin/Cello

317 Orchestral Trumpet

318 Orchestral Flute

319 Bright Bass

320 Brass Ensemble

321 French Horn

322 Orchestral Flute

323 Panpipes

324 Orchestral Oboe

325 Orchestral Clarinet

326 Bagpipes

327 Choir Aahs

328 Choir Oohs

329 Organ Chimes

330 Tower Chimes

331 Tubular Bells

332 Handbells

333 Timpani

334 Crash Cymbal
